Specifications:

• Model   #           7606

• Capacity:           60 tons

• Length   :           6 ft. Overall,  52‘‘ between frames

• Stroke    :          8‘‘

• Throat                8‘‘

• Max.open:         14‘‘

• Motor h.p.:        10

• Voltage    :         220/440  3 phase

• Year        :          1997

• Approx. wt.:      6,000 lbs.

• Approx. Dim:    88‘‘ L x 42‘‘ W x 70‘‘ T

Equipped With:

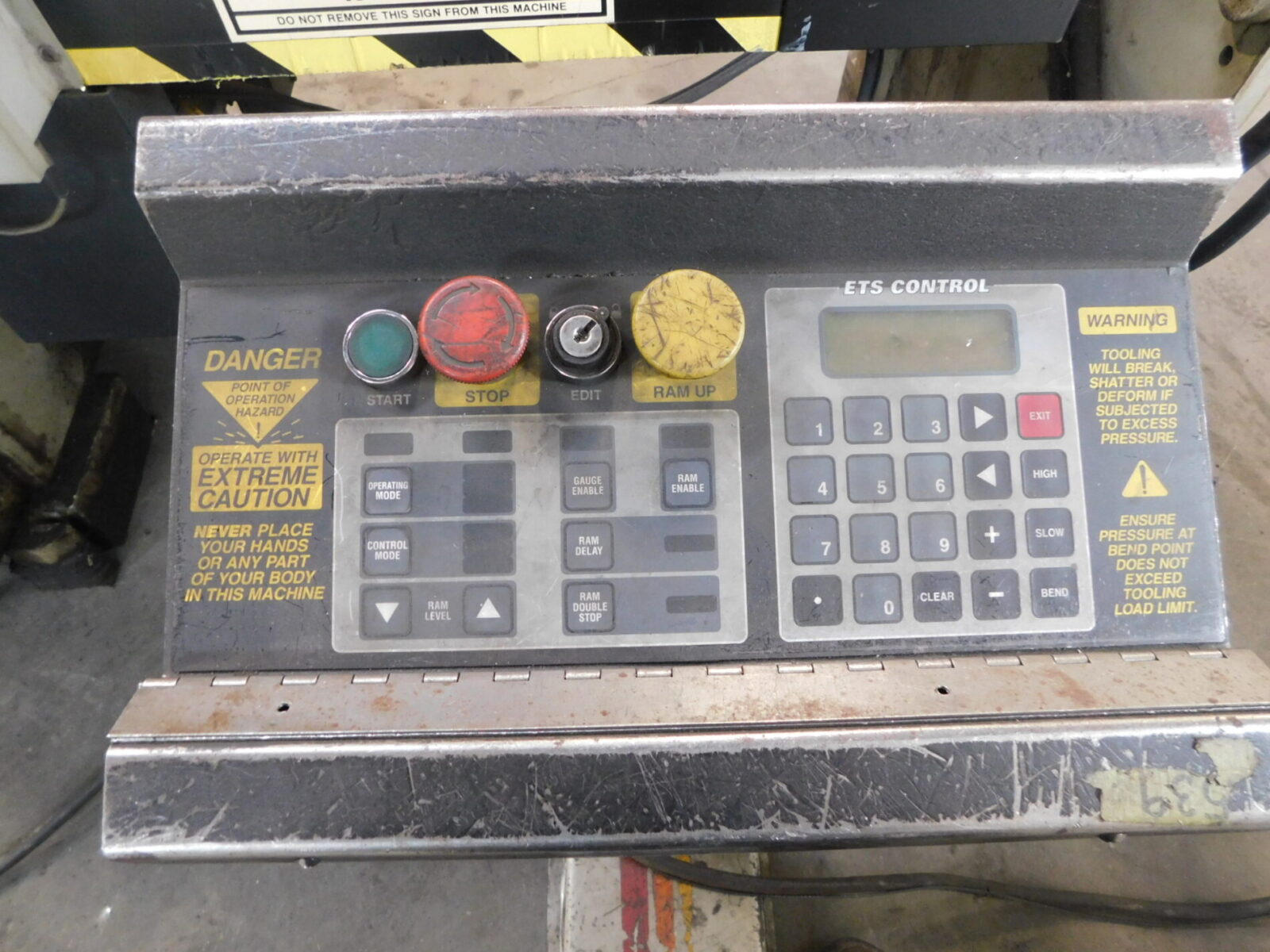

• ETS 200 2-axis cnc control

• 24‘‘ backgauge

• Die holder – tooling ready

• 130 i.p.m. fast approach

• 20 i.p.m. slow speed

• 260 i.p.m. return speed

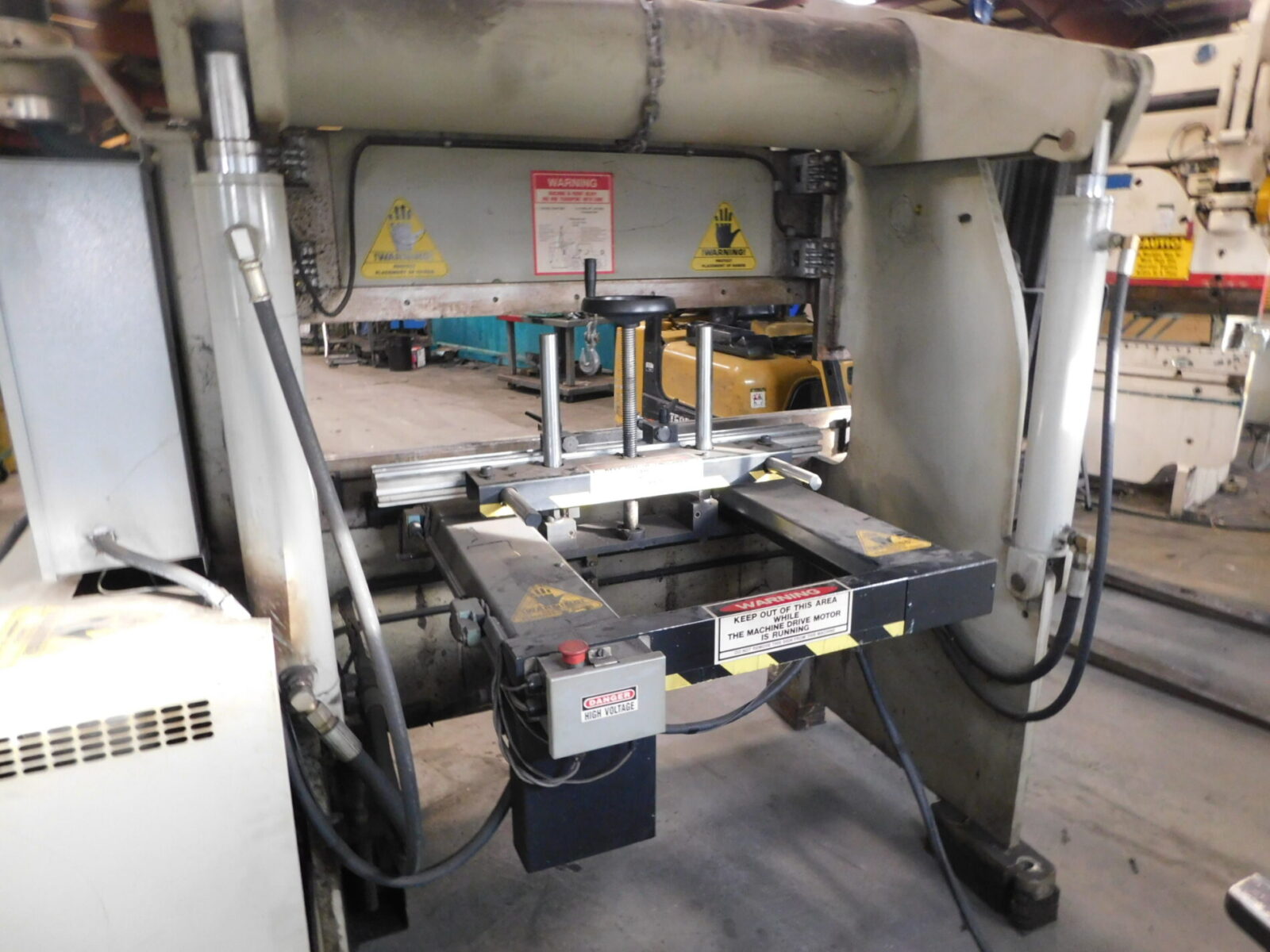

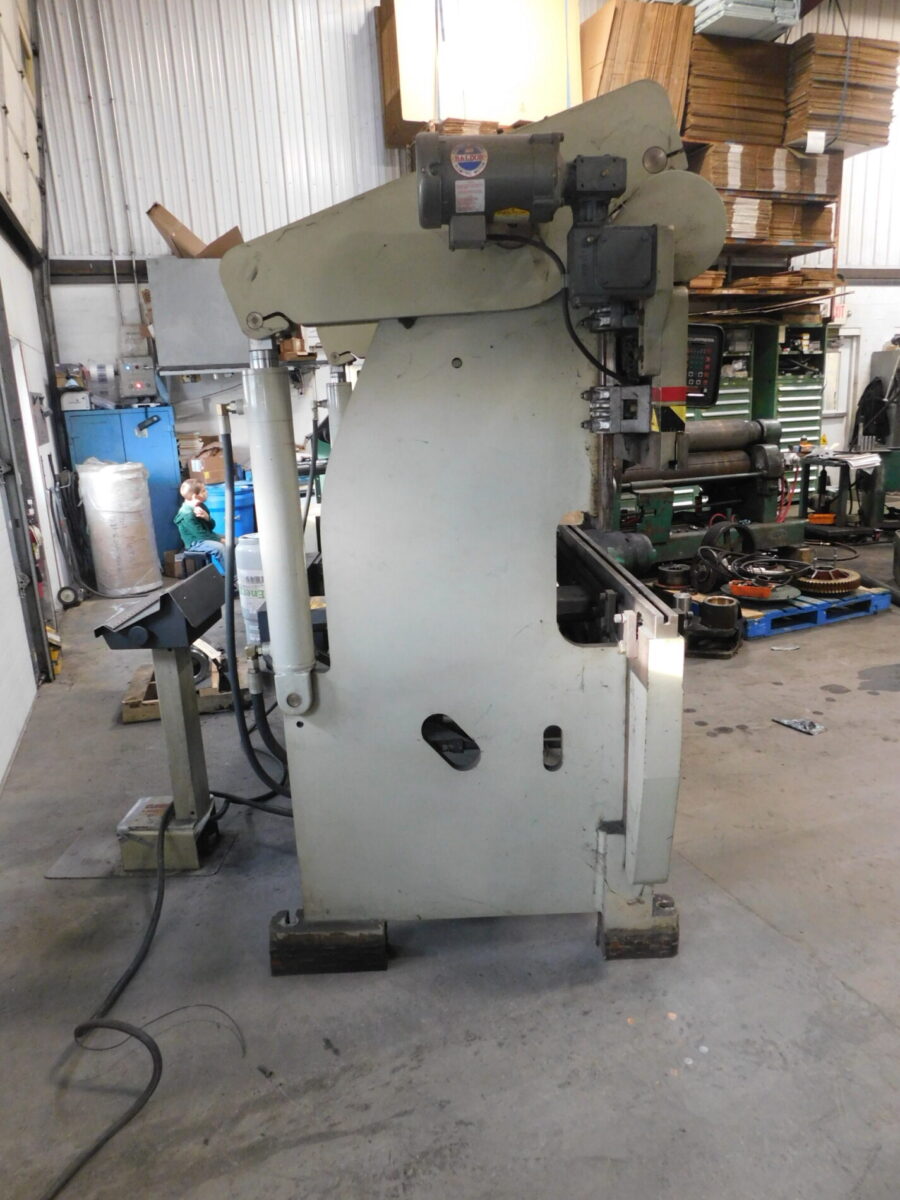

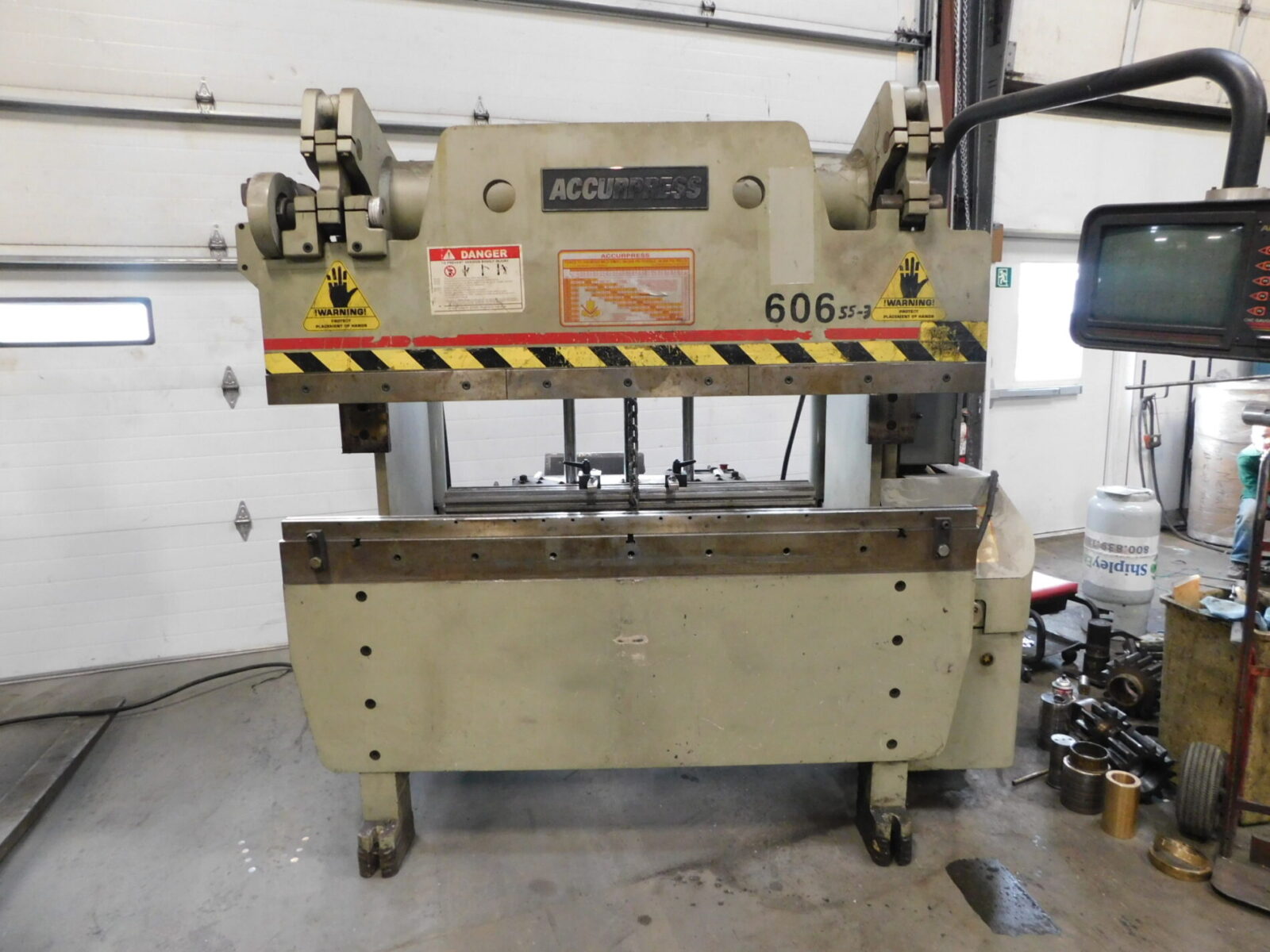

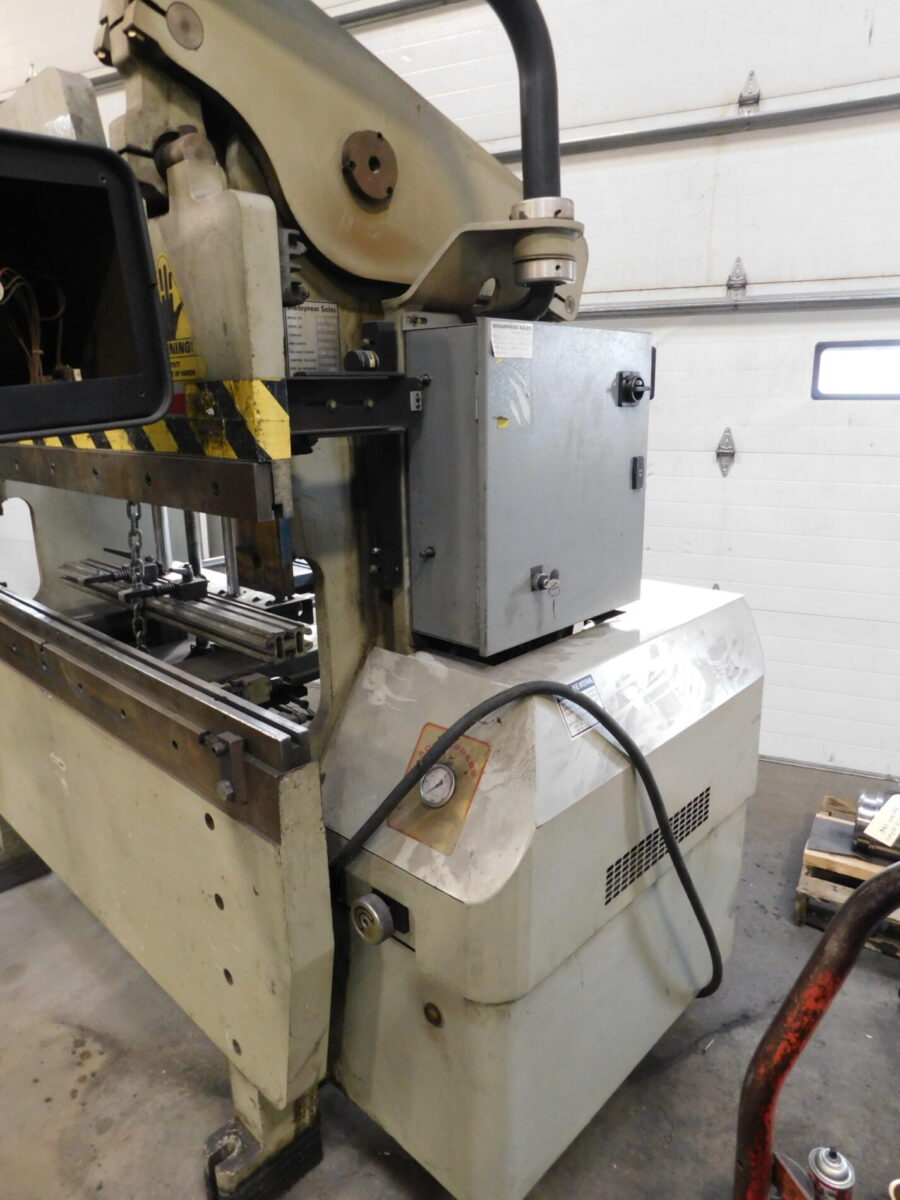

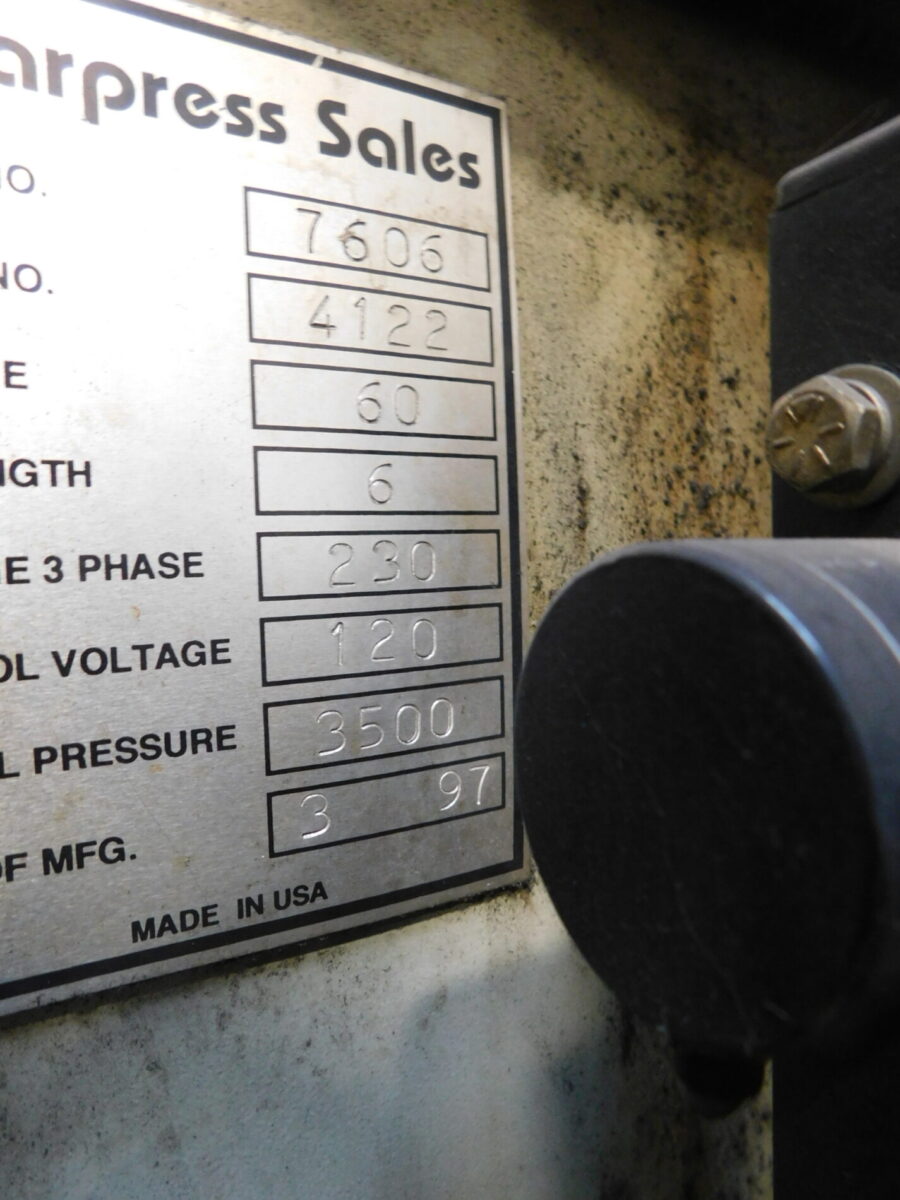

Photos
